Rocket Lab Moon Mission for NASA a Success – Business Wire

Published

 on


LONG BEACH, Calif.–(BUSINESS WIRE)–Rocket Lab USA, Inc. (Nasdaq: RKLB) (“Rocket Lab” or “the Company”), a leading launch and space systems company, today announced it has successfully deployed a pathfinding satellite for NASA, setting it on a course to the Moon. The deployment marks the successful completion of Rocket Lab’s first deep space mission, paving the way for the Company’s upcoming interplanetary missions to Mars and Venus.

Owned and operated by Advanced Space on behalf of NASA, the Cislunar Autonomous Positioning System Technology Operations and Navigation Experiment (CAPSTONE) will be the first spacecraft to test the Near Rectilinear Halo Orbit (NRHO) around the Moon. This is the same orbit intended for NASA’s Gateway, a Moon-orbiting outpost that will provide essential support for long-term astronaut lunar missions as part of the Artemis program.

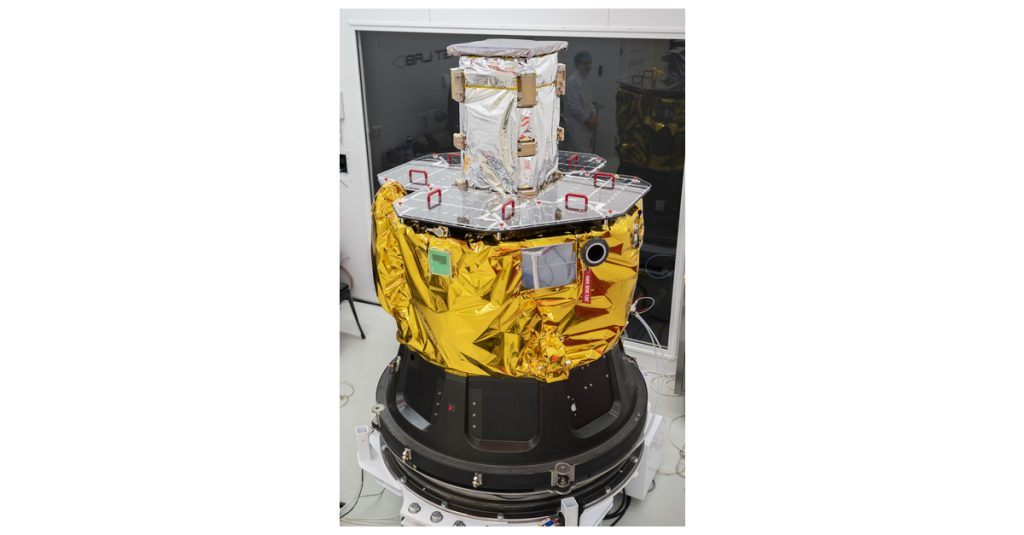

Rocket Lab’s role in the mission took place over two phases. First, CAPSTONE was successfully launched to low Earth orbit by Rocket Lab’s Electron launch vehicle on June 28th. From there, Rocket Lab’s Lunar Photon spacecraft provided in-space transportation, power, and communications to CAPSTONE. After six days of orbit-raising burns by Lunar Photon’s 3D printed HyperCurie engine, CAPSTONE was deployed on its ballistic lunar transfer trajectory to the Moon as planned at 07:18 UTC on July 4th. The mission was Rocket Lab’s fourth Electron launch this year, demonstrating the rocket’s continued reliability. In addition to providing the launch, Rocket Lab designed, manufactured, and operated the Lunar Photon spacecraft, successfully completing a highly complex deep space mission and demonstrating Rocket Lab’s growing capabilities as an end-to-end space company.

“The CAPSTONE mission marks the beginning of humanity’s return to the Moon through NASA’s Artemis program and we’re incredibly proud that Rocket Lab has played a key role in that,” said Rocket Lab founder and CEO, Peter Beck. “The Rocket Lab team has been working on CAPSTONE with NASA and our mission partners for more than two years, developing new small satellite technology in the form of the Lunar Photon spacecraft to make this mission possible, so it’s an incredible feeling after all that hard work and innovation to achieve mission success and set CAPSTONE on a course for the Moon. This has been Rocket Lab’s most complex mission to date and our team has been incredible. We pushed Electron and Photon to their limits and proved it’s possible to do big missions with small spacecraft. Now we’ll be applying this ground-breaking technology for more interplanetary journeys, including our upcoming missions to Venus and Mars.”

With Rocket Lab’s role in the mission now complete, CAPSTONE’s solo journey to the Moon has begun. CAPSTONE will use its own propulsion and the Sun’s gravity to navigate the rest of the way to the Moon, a four-month journey that will have CAPSTONE arriving to its lunar orbit on November 13, 2022. The gravity-driven track will dramatically reduce the amount of fuel the CubeSat needs to get to the Moon. Advanced Space and Terran Orbital will manage the operation of the CAPSTONE satellite for the duration of its orbital lifespan.

The CAPSTONE mission was Rocket Lab’s 27th Electron launch overall, but it featured several significant technological firsts for the Company, including:

  • First deep space mission.
  • First use of Lunar Photon, a high energy variant of the Rocket Lab-designed and built Photon spacecraft. Rocket Lab previously launched and continues to operate two low Earth orbit variants of the Photon spacecraft.
  • First collaborative mission between Rocket Lab and Advanced Solutions Inc, a Colorado-based flight-software company acquired by Rocket Lab in late 2021.
  • First time using the FR-lite satellite radio which Rocket Lab has an exclusive license agreement with Johns Hopkins University Applied Physics Laboratory to manufacture.
  • First mission where Electron’s second stage deorbited the same day as launch.
  • First mission planning and executing lunar trajectories.
  • At 300 kg (661 lbs) of payload mass, the mission was Electron’s heaviest lift to date.

CAPSTONE was the first in a series of interplanetary missions for Rocket Lab’s Photon spacecraft, including the ESCAPADE mission to Mars in 2024 and Rocket Lab’s upcoming private mission to Venus.

Advanced Space of Colorado, a leading commercial space solutions company, owns the CAPSTONE satellite and operates the mission. CAPSTONE was designed and built by Terran Orbital. CAPSTONE development is supported by NASA’s Space Technology Mission Directorate via the Small Spacecraft Technology Program at NASA’s Ames Research Center in California’s Silicon Valley. Advanced Exploration Systems within NASA’s Human Exploration and Operations Mission Directorate supports the launch and mission operations. NASA’s Launch Services Program at Kennedy Space Center in Florida is responsible for launch management.

+ Images & Video Content

https://flic.kr/s/aHBqjzPrHL

+ About Rocket Lab

Founded in 2006, Rocket Lab is an end-to-end space company with an established track record of mission success. We deliver reliable launch services, satellite manufacture, spacecraft components, and on-orbit management solutions that make it faster, easier and more affordable to access space. Headquartered in Long Beach, California, Rocket Lab designs and manufactures the Electron small orbital launch vehicle and the Photon satellite platform and is developing the Neutron 8-ton payload class launch vehicle. Since its first orbital launch in January 2018, Rocket Lab’s Electron launch vehicle has become the second most frequently launched U.S. rocket annually and has delivered 147 satellites to orbit for private and public sector organizations, enabling operations in national security, scientific research, space debris mitigation, Earth observation, climate monitoring, and communications. Rocket Lab’s Photon spacecraft platform has been selected to support NASA missions to the Moon and Mars, as well as the first private commercial mission to Venus. Rocket Lab has three launch pads at two launch sites, including two launch pads at a private orbital launch site located in New Zealand and a second launch site in Virginia, USA which is expected to become operational in 2022. To learn more, visit www.rocketlabusa.com.

Adblock test (Why?)



Source link

Continue Reading

Science

2D array of electron and nuclear spin qubits opens new frontier in quantum science – Phys.org

Published

 on


Researchers used light and electron spin qubits to control nuclear spin in a 2D material, opening a new frontier in quantum science and technology. Credit: Secondbay Studio

By using photons and electron spin qubits to control nuclear spins in a two-dimensional material, researchers at Purdue University have opened a new frontier in quantum science and technology, enabling applications like atomic-scale nuclear magnetic resonance spectroscopy, and to read and write quantum information with nuclear spins in 2D materials.

As published Monday (Aug. 15) in Nature Materials, the research team used electron spin qubits as atomic-scale sensors, and also to effect the first experimental control of nuclear spin qubits in ultrathin hexagonal .

“This is the first work showing optical initialization and coherent control of nuclear spins in 2D materials,” said corresponding author Tongcang Li, a Purdue associate professor of physics and astronomy and electrical and computer engineering, and member of the Purdue Quantum Science and Engineering Institute.

“Now we can use light to initialize nuclear spins and with that control, we can write and read quantum information with nuclear spins in 2D materials. This method can have many different applications in quantum memory, quantum sensing, and quantum simulation.”

Quantum technology depends on the qubit, which is the quantum version of a classical computer bit. It is often built with an atom, subatomic particle, or photon instead of a silicon transistor. In an electron or nuclear spin qubit, the familiar binary “0” or “1” state of a classical computer bit is represented by spin, a property that is loosely analogous to magnetic polarity—meaning the spin is sensitive to an electromagnetic field. To perform any task, the spin must first be controlled and coherent, or durable.

The spin qubit can then be used as a sensor, probing, for example, the structure of a protein, or the temperature of a target with nanoscale resolution. Electrons trapped in the defects of 3D diamond crystals have produced imaging and sensing resolution in the 10–100 nanometer range.

But qubits embedded in single-layer, or 2D materials, can get closer to a target sample, offering even higher resolution and stronger signal. Paving the way to that goal, the first electron spin qubit in hexagonal boron nitride, which can exist in a single layer, was built in 2019 by removing a boron atom from the lattice of atoms and trapping an electron in its place. So-called boron vacancy electron spin qubits also offered a tantalizing path to controlling the nuclear spin of the nitrogen atoms surrounding each electron spin qubit in the lattice.

In this work, Li and his team established an interface between and nuclear spins in ultrathin hexagonal boron nitrides.

The nuclear spins can be optically initialized—set to a known spin—via the surrounding electron spin qubits. Once initialized, a radio frequency can be used to change the nuclear spin qubit, essentially “writing” information, or to measure changes in the nuclear spin qubits, or “read” information. Their method harnesses three nitrogen nuclei at a time, with more than 30 times longer coherence times than those of electron qubits at room temperature. And the 2D material can be layered directly onto another material, creating a built-in sensor.

“A 2D nuclear spin lattice will be suitable for large-scale quantum simulation,” Li said. “It can work at higher temperatures than superconducting qubits.”

To control a nuclear spin qubit, researchers began by removing a boron atom from the lattice and replacing it with an electron. The electron now sits in the center of three nitrogen atoms. At this point, each nitrogen nucleus is in a random spin state, which may be -1, 0, or +1.

Next, the electron is pumped to a spin-state of 0 with laser light, which has a negligible effect on the spin of the nitrogen nucleus.

Finally, a hyperfine interaction between the excited electron and the three surrounding nitrogen nuclei forces a change in the spin of the nucleus. When the cycle is repeated multiple times, the spin of the nucleus reaches the +1 state, where it remains regardless of repeated interactions. With all three nuclei set to the +1 state, they can be used as a trio of qubits.

At Purdue, Li was joined by Xingyu Gao, Sumukh Vaidya, Peng Ju, Boyang Jiang, Zhujing Xu, Andres E. Llacsahuanga Allcca, Kunhong Shen, Sunil A. Bhave, and Yong P. Chen, as well as collaborators Kejun Li and Yuan Ping at the University of California, Santa Cruz, and Takashi Taniguchi and Kenji Watanabe at the National Institute for Materials Science in Japan.

“Nuclear spin polarization and control in hexagonal boron nitride” is published in Nature Materials.


Explore further

New method of controlling qubits could advance quantum computers


More information:
Tongcang Li, Nuclear spin polarization and control in hexagonal boron nitride, Nature Materials (2022). DOI: 10.1038/s41563-022-01329-8. www.nature.com/articles/s41563-022-01329-8

Citation:
2D array of electron and nuclear spin qubits opens new frontier in quantum science (2022, August 15)
retrieved 16 August 2022
from https://phys.org/news/2022-08-2d-array-electron-nuclear-qubits.html

This document is subject to copyright. Apart from any fair dealing for the purpose of private study or research, no
part may be reproduced without the written permission. The content is provided for information purposes only.

Adblock test (Why?)



Source link

Continue Reading

Science

This is when our Sun will die! Astonishing study reveals all – HT Tech

Published

 on


The Sun’s life may be coming to an end. Here’s this study says our Sun will die.

Those of us who have gone through a mid-life crisis know that it is a period of really big emotional turmoil. Everyone who reaches a certain age goes through it. Now, it has been revealed that not even massive celestial bodies like the Sun are safe from it. And yes, that also indicates that our Sun will die too.

A new study by the European Space Agency (ESA) has revealed that the Sun has entered its middle age, estimated to be around 4.57 billion years. It seems that the Sun is also going through a mid-life crisis with frequent Solar Flares, Coronal Mass Ejections (CMEs) and Solar Storms. The study was conducted with the help of data collected by the Gaia spacecraft.

Currently, the Sun is at the peak of its 11-year solar cycle, which has resulted in frequent solar flares, coronal mass ejections and solar storms. As the cycle ends, the frequency of these phenomena will decrease.

As the Sun gets older, the hydrogen in the Sun’s core will run out and the Sun will turn into a giant red star, lowering its surface temperature and cooling off. According to the ESA, as the Sun will reach the end of its life cycle, it will become a dim white dwarf star.

Orlagh Creevey from Observatoire de la Côte d’Azur, France searched through the data by studying some of the oldest stars in the Milky Way Galaxy with surface temperatures between 3000K and 10,000K. Orlagh said, “We wanted to have a really pure sample of stars with high precision measurements.”

The study concluded that the Sun will reach its peak temperatures nearly 8 billion years into the future after which it will lower its surface temperature and increase its size.

Orlagh said, “If we don’t understand our own Sun and there are many things we don’t know about it how can we expect to understand all of the other stars that make up our wonderful galaxy.”

NASA, on the other hand, had earlier sad in its report, “When it starts to die, the Sun will expand into a red giant star, becoming so large that it will engulf Mercury and Venus, and possibly Earth as well. Scientists predict the Sun is a little less than halfway through its lifetime and will last another 5 billion years or so before it becomes a white dwarf.”

Adblock test (Why?)



Source link

Continue Reading

Science

Investigating the effect of N-doping on carbon quantum dots structure, optical properties and metal ion screening | Scientific Reports – Nature.com

Published

 on


Abstract

Carbon quantum dots (CQDs) derived from biomass, a suggested green approach for nanomaterial synthesis, often possess poor optical properties and have low photoluminescence quantum yield (PLQY). This study employed an environmentally friendly, cost-effective, continuous hydrothermal flow synthesis (CHFS) process to synthesise efficient nitrogen-doped carbon quantum dots (N-CQDs) from biomass precursors (glucose in the presence of ammonia). The concentrations of ammonia, as nitrogen dopant precursor, were varied to optimise the optical properties of CQDs. Optimised N-CQDs showed significant enhancement in fluorescence emission properties with a PLQY of 9.6% compared to pure glucose derived-CQDs (g-CQDs) without nitrogen doping which have PLQY of less than 1%. With stability over a pH range of pH 2 to pH 11, the N-CQDs showed excellent sensitivity as a nano-sensor for the highly toxic highly-pollutant chromium (VI), where efficient photoluminescence (PL) quenching was observed. The optimised nitrogen-doping process demonstrated effective and efficient tuning of the overall electronic structure of the N-CQDs resulting in enhanced optical properties and performance as a nano-sensor.

Introduction

The demand for high-performance carbon quantum dots (CQDs) with a range of applications, including sensing has been steadily increasing. However, the synthesis of CQDs continues to face challenges including high costs, lengthy multistep processes, and the use of hazardous substances1,2. Recently, biomass-derived CQDs have attracted considerable attention, and are considered as an optimal and green approach to prepare efficient CQDs. Biomass and biomass waste (agriculture product, agricultural residue, municipal solid waste etc.) are abundant, high in carbon content (45–55%), and are an environmentally friendly renewable resource3. Therefore, the utilisation of biomass as carbon resources for nanomaterial synthesis is an eco-friendly process and expected to reduce the total synthetic cost4. Although a broad range of biomass materials have been employed in producing CQDs, generally, these synthetic routes faced problems associated with poor control of the CQDs particle size, quality, and homogeneity of the product5. In addition, the CQDs synthesised from biomass or biomass waste, commonly possess poor optical properties and a low PLQY. The doping of heteroatom such as (N, P, S) is one of the most common methods to improve the optical properties of biomass-derived CQDs6,7. However, the questions related to the origin of the optical improvement with optimised dosing of these heteroatoms still need to be answered. Furthermore, in most conventional methodologies, these doping processes result in a longer synthesis time and higher energy consumption8.

In this work, the continuous hydrothermal flow synthesis (CHFS) which is primarily water-based was employed; thus, it is considered the greenest and most promising synthesis method for making CQDs. Notably, the CHFS allows designing or tailoring of the nanoparticles for specific functions based on the nucleation and surface functional processes. The comparison between CHFS and the traditional hydrothermal process revealed that the CHFS consumed less energy and time, while producing a highly homogenous quality product9. Moreover, the continuous hydrothermal process can be employed in multi-purposes such as controlling the nucleation to control the particle size and the addition of surfactant coating or dopant without further post-treatments10. In this paper, we report the use of CHFS process, to successfully synthesise N-doped carbon quantum dots (N-CQDs) from glucose which is an abundant, readily available, cost-effective biomass carbon source; and ammonia is used as a nitrogen dopant. Synthesised N-CQDs with different concentrations of ammonia were used to explore the effect of the concentration of nitrogen dopant on the optical characteristics of CQDs. A range of characterisation techniques were employed to investigate the origin of the optical enhancement. The performance of the N-CQDs as chemical nanosensor was tested. Currently clean water resources are foremost among global challenges facing society today. A significant proportion of the worlds wastewater containing heavy metals as pollutants  is disposed untreated in to the environment11. Therefore, the application of the prepared N-CQDs as chemical sensor to detect chromium (VI) which is carcinogenic, hemotoxic, and genotoxic; the main source being industrial waste water, would be timely.

Experimental work

Chemicals

Glucose, ammonia (32%), potassium chromate, and potassium dichromate were purchased from Fisher Scientific. The solutions of metal ions used for the sensing application experiments were prepared using nitrate (Ag+, Ce3+, Co2+, Cr3+, Ni2+, Fe3+), sulphate (Cu2+ and Fe2+), chloride (K+, Na+, Mg2+) and sodium (CrO42−, Cr2O72−, NO3, CH3COO, HCOO, SO42−, F, Cl, Br, I). These chemicals were purchased from Sigma-Aldrich and were used as received. 15 MΩ deionized H2O (ELGA Purelab) was used for all the experiments.

Equipment

UV–Vis spectrophotometry: Shimadzu UV-1800 was used to perform the absorption measurements (λ = 200 to 800 nm) using a quartz cuvette (10 mm).

Photoluminescence (PL) spectroscopy: The steady-state fluorescence spectra of NCQDs were measured with Shimadzu RF-6000 spectrofluorophotometer.

High-resolution transmission electron microscopy (HRTEM): NCQDs were diluted in isopropanol and applied onto a carbon holey mesh grid (Agar) and allowed to air dry. The samples were then imaged using JEM 2100 (Jeol, Japan) at an acceleration voltage of 200 kV and at a range of magnifications between 15 and 500 K. Representatives NCQDs samples (g-CQDs, N-0.25, N-1, N-5 and N-10) were imaged and analysed.

Fourier–transform infrared (FTIR) spectra was recorded using an IR Affinity-1S Fourier transform infrared spectrometer instrument.

Raman spectra of the prepared N-CQDs was measured with a Horiba LabRAM HR Evolution spectrometer with radiation at 633 nm.

An Edinburgh Instruments FLS1000 photoluminescence spectrometer was used to measure the PL lifetime and the PLQY of the samples. The lifetime was measured using a 375 nm pulsed laser, and the data was fitted with 3-exponentials after reconvolution with instrument response function. The absolute quantum yield (QYabs) of the samples were investigated by using integrating sphere accessory with a standard method. Then, the true fluorescence quantum yield (QYtrue) is calculated by using the Eq. (1) where a is the fraction of the re-absorbed area.

$$mathrmQY^mathrmtrue=fracmathrmQY^mathrmabs1-mathrma+mathrma.fracmathrmQY^mathrmabs100$$
(1)

X-ray photoelectron spectroscopy (XPS): an AXIS Ultra DLD (Kratos Surface Analysis) setup equipped with a 180° hemispherical analyser, using Al Kα1 (1486.74 eV) radiation produced by a mono-chromicized X-ray source at operating power of 300 W (15 kV × 20 mA), with spot size of 0.7 mm was used to record the XPS spectra. The partial charge compensation was achieved by using a flood gun operating at 1.52 A filament current, 2.73 V charge balance, and 1.02 V filament bias. The vacuum in the analysis chamber was at least 1 × 10−8 mbar.

Synthetic methodology

Continuous hydrothermal flow synthesis (CHFS) was employed to synthesize N-CQDs (Supplementary Fig. 1). The process consists of three feedstock streams; (i) glucose (with a concentration of 70 mg mL−1) which was used as carbon source, (ii) ammonia with varied concentrations from 0.25 M up to 10.0 M was used as an N-dopant, and (iii) supercritical water which is the key parameter of this reaction. Firstly, the deionized water (with the flow rate 20 mL min−1) was heated up to 450 °C, and the pressure was kept at 24.8 MPa by using a back-pressure regulator (BPR) during the experiment (this condition is previously reported by our group as the optimised environment for the CQDs synthesis)10. The reaction was conducted by injecting the two precursors into the engineered mixer labelled as the “Reactor” (Fig. S1). Here, the precursors were mixed with supercritical water, and the nano dots were produced (in fraction of seconds). The residence time (~ 1.8 s) of the reaction was controlled by the flow rate of the precursors; both glucose and ammonia were pumped at the same time into the reactor with 5 mL min−1 flow rate. The reaction mixture travelled through a cooler to the BPR, and was collected for further treatments. The obtained solutions from the CHFS reaction mixtures were filtered using a 0.2 µm alumina membrane; subsequently, the solutions were continuously dialysed using a 30 kDa membrane in a tangential filtration unit. The cleaned solutions were freeze-dried, and the obtained average yield was 10.68 mg ml−1.

The CQDs samples synthesised from [glucose] = 70 mg mL−1 and ammonia with varied concentrations (0.25 M, 0.5 M, 0. 75 M, 1.0 M, 2.5 M, 5.0 M, 7.5 M and 10.0 M), were denoted as N-0.25, N-0.5, N-0.75, N-1, N-2.5, N-5, N-7.5, and N-10, respectively; g-CQDs was synthesised from the same source (glucose) but without nitrogen doping. The fluorescent photographs of the samples are shown in Fig. S2.

pH stability testing

The solutions with pH ranging from 1 to 13 were prepared using varying concentrations of NaOH (initial concentration 1.0 M) and HCl (1.0 M) solutions which were then diluted to the required pH. A dilute solution of N-CQDs (optical density, OD = 0.1) in deionised water was prepared. Following that, 100 μL of this diluted N-CQDs solution was added to a 3000 μL of each solution prepared at thedesired pH level (range 1–13). A pH meter was used to measure the corresponding pH values. The fluorescence spectra of these solutions were recorded using a Shimadzu RF-6000 Spectro fluorophotometer.

Chromium (VI) ion-sensing experiments

The detection of Cr (VI) ion experiment was conducted with various metal ions (as reported above), each prepared with a concentration of 50 ppm. In a typical experiment, 100 μL, N-CQDs (0.1 OD) was added to the 3.0 mL aqueous metal ion solution. The fluorescence spectrum of mixture solutions was measured using a Shimadzu RF-6000 Spectro fluorophotometermeas. The fluorescence lifetime was investigated to achieve a deeper understanding of the quenching mechanism using an Edinburgh Instruments FLS1000 spectrophotometer.

Limits of detection (LOD) and limits of quantification (LOQ)

The sensitivity of the N-CQDs sensor for Cr (VI) was investigated by evaluating their LOD and LOQ. For that, Cr (VI) ion solutions with various concentrations of 300 ppm, 200 ppm, 100 ppm, 50 ppm, 30 ppm, 10 ppm, 5 ppm, 2 ppm, 1 ppm and 0.5 ppm were first prepared. Then, 100 μL of N-CQDs were added to 3.0 mL of the prepared Cr (VI) ion solutions. The fluorescence spectra were recorded to estimate the LOD and LOQ by using Stem-Volmer graphs, LOD = 3σ/Ksv, LOQ = 10σ/Ksv, where Ksv is the slope of the graph, and σ is the error of the intercept.

Results and discussion

HRTEM images of N-CQDs (representative N-0.25 sample) show that the as-synthesized N-CQDs are spherical (Fig. 1a,c) with particle size ranging from 1.78 to 6.50 nm. The Gaussian distribution (Fig. 1b) of a sample of 150 particles shows the mean particle size of 4.60 ± 0.87 nm. In addition, the N-CQDs possess a crystalline structure as indicated by graphite lattice d-spacing of 0.22 nm (Fig. 1d). Similar features were also observed for the other samples g-CQDs, N-1, N-5 and N-10 analysed via TEM (Fig. S3).

Figure 1

HRTEM images of N-CQDs at different magnification and scale: (a) 20 nm, (c) 10 nm, (b) particle size Gaussian distribution histogram, (d) graphitic core lattice. The N-CQDs have commonly a particle size of 4.60 ± 0.87 nm.

To determine the nature of the functionalisation, the synthesised N-CQDs were investigated using the Fourier transform infrared (FTIR) spectroscopy. The samples were classified into two groups:(i) N-CQDs with a lower concentration of ammonia (from N-0.25 to N-1) and (ii) with a higher concentration of ammonia (from N-2.5 to N-10). The FTIR spectra (Fig. 2) showed that all N-CQDs have hydrophilic groups on their surface such as O–H (hydroxyl) corresponding to the peak at 3389 cm−1 and N–H (3263 cm−1), thus confirming their good solubility in the water. In addition, vibrations of C–H (2950 cm−1), C=O (1581 cm−1), C–N (1435 cm−1) and C–O (1080 cm−1) bonds were also observed in each sample13,14,15. The comparison of the FTIR spectra (Fig. S4) of the samples showed that increasing N-doping (ammonia concentration, from N-0.25 to N-1) displayed a diminishing stretch in vibration for C–O bond at 1080 cm−1. While the group of samples with a higher concentration of ammonia (N-2.5 to N-10) showed a sharp vibration of C–N bond at 1435 cm−1.

Figure 2
figure 2

FTIR spectra of N-CQDs with a lower concentration of ammonia (from N-0.25) and higher concentration of ammonia (N-10).

To achieve a deeper understanding of the surface characterisation of the N-CQDs and also to investigate the chemical composition of N-CQDs, X-ray photoelectron spectroscopy (XPS) was employed. The resultant XPS spectra shown in Fig. 3 were deconvoluted using Voigt functions (Lorentzian and Gaussian widths) with a distinct inelastic background for each component16. A minimum number of components is used to obtain a convenient fit. The binding energy scale was calibrated to the C 1s standard value of 284.6 eV. The atomic composition has been determined by using the integral areas provided by the deconvolution procedure normalized at the atomic sensitivity factor (Table S1). The XPS spectrum of the N-CQDs displays three typical peaks C1s (285.0 eV), N1s (399.0 eV), and O1s (531.0 eV). The fitted C1s spectrum was deconvoluted into four components, corresponding to carbon in form of C=C/C–C bonds (~ 284.4 eV), C–O/C–N (~ 285.8 eV), C=O (~ 287.3) and O=C–OH (~ 288.4 eV)17. Whilst, the N1s band showed three peaks after deconvolution which are 398.8 eV, 399.6 eV and 400.8 eV, representing pyridinic N, N–H and amide C–N, respectively18.

Figure 3
figure 3

Representative XPS spectra of N-CQDs showing the lowest (N-0.25) and highest (N-10) nitrogen doped samples. The spectra display three typical peaks C1s (285.0 eV), N1s (399.0 eV), and O1s (531.0 eV). The deconvoluted N1s band showed three peaks representing pyridinic N, N–H and amide C–N.

The content of each nitrogen doping species (pyridinic, pyrrolic and graphitic) are identified and quantified from the XPS spectra of NCQDs with the purpose of understanding their influence over the optical and chemical properties (Table S2). As commonly reported, the fluorescent property of CQDs can be enhanced by using nitrogen-doping. However, only the nitrogen bonded to carbon can improve the emission19. Also, a larger ratio of N/C was observed for N-CQDs samples synthesised with a higher concentration of ammonia (Table S1). The O1s region contains three peaks at 530.9 eV, 532.2 eV and 533.3 eV for C–OH/C–O–C, C=O, H–O–H, respectively20. In addition, the oxygen content is also a key parameter in the N-CQDs emission as it can maintain the balance between sp2 and sp3-carbon atoms21. Therefore, Raman spectroscopy was employed to investigate the disorder in the carbon bonding arrangement of N-CQDs.

The Raman spectra (Fig. S5) of the N-CQDs exhibited typical graphitic features consisting of the D mode (at 1368 cm−1) related to symmetry transformation by the defects, and the G band (at 1586 cm−1), which is assigned to the graphitic core sp2 (graphite-like) bonds. This is not surprising as the HRTEM images of N-CQDs showed a typical lattice spacing of graphite (see Fig. 1d). When comparing the Raman spectra between N-CQDs, at first glance, those spectra look similar, a common ratio ID/IG of 0.95 revealed a balance between the sp2 and sp3 bonds in the N-CQDs structure. This is different from g-CQDs where an ID/IG ratio of 0.83 was observed and assigned to the carbon core (sp2 bonds)10. This is probably attributed to the changes introduced by the nitrogen doping resulting in the transformation of C–C (sp2 bonds) into the sp3 bonding between N, O and C.

Optical properties of N-CQDs

The absorption spectra of the as-prepared N-CQDs measured using UV–Vis spectrophotometry are shown in Fig. 4. The N-CQDs samples have a strong peak around 265 nm and a shoulder around 295 nm (Fig. 4a). The 265 nm absorption peak is characteristics of π–π* transitions of the graphitic core (C=C or C–C) of sp2 domains present in the sp3 environment, and the 295 nm is attributed to n–π* (C=O) transitions and C–N/C=N bonds22,23. For comparison, the absorption spectrum of CQDs without nitrogen doping was also measured. It is noted that the absorption peaks related to N-CQDs are red-shifted compared to g-CQDs (synthesised from the same source glucose but without nitrogen doping), Fig. 4b. These transitions, are observed at 225 nm = π–π* (graphitic core), and 280 nm = n–π* transitions (C=O)10. Therefore, the absorption peak observed at 295 nm in the case of the N-CQDs is due to the formation of the C–N/C=N bonds related to the doping effect caused by the presence of graphitic nitrogen24,25.

Figure 4
figure 4

(a) UV–Vis absorption spectra of (a) N-CQDs and (b) g-CQDs without nitrogen doping. The presence of C–N/C=N bonds is observed at 295 nm.
